Product Details
＋
(item no. 3730060)
Product Overview

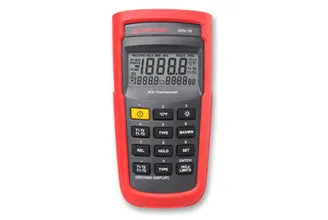

The RTD-10 Dual Input Digital RTD Thermometer is preferred for industrial process applications. It typically provides higher accuracy then thermocouples and maintains stability for many years.
Resistive thermal devices (RTDs) are becoming the preferred temperature sensors for precision industrial applications. Instead of generating voltage, RTDs generate electrical resistance, which varies linearly with temperature. Amprobe RTD thermometers maintain long-term stability for superior repeatability of measurements, when compared to thermocouples.
Features
- RTD dual input function
- Pt3916/Pt3926/Pt385 RTD standard
- °C/°F user-selectable
- Warning beeper with hi/lo setting
- Resolution 0.1°C to 0.2°F
- Included accessories: Users manual; batteries (4)
Specifications
| FEATURE | RTD-10 | RTD-10W |
| Wireless transmission: | - | • |
| Temperature: | RTD: Pt385 (100 O), Pt3916/Pt3926 (100 O) Range: Pt385 (100 O): -328 °F → 1472 °F (-200 °C → 800 °C) Pt3916 / Pt3926 (100 O): -328 °F → 1166 °F (-200 °C → 630 °C) |
|
| Accuracy: | /- (0.05 %rdg 0.4 °F) on °F scale /- (0.05 %rdg 0.2 °C) on °C scale |
|
| Number if parameters on the display: | 3 | |
| Specifications | |
| Display: | 4½ digit liquid crystal display (LCD) with maximum reading of 19999. |
| Polarity: | Automatic, positive implied, negative polarity indication. |
| Battery: | 1.5V x 4pcs AAA size |
| Temperature scale: | Celsius or Fahrenheit user-selectable |
Models and Accessories
| Model Name | Description | |
| RTD-10 |
|
