Product Details
＋
(item no. 4109582)

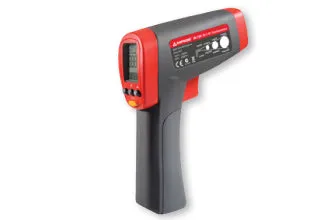

The Amprobe IR-730, a 30:1 spot to distance ratio infrared thermometer, offers best in class accuracy and response time with a temperature measurement range of -26˚F to 2282˚F or -32°C to 1250°C. The IR-730 is specifically designed for HVAC/R, electrical, industrial maintenance, automotive as well as quality control and fire prevention applications.
Features
- 30:1 Distance to Spot Ratio
- Temp Range of -26°F to 2282°F or -32°C to 1250°C
- Precision accuracy and rapid response time
- Laser pointer, backlit dual LCD Display
- Auto display hold and MAX/MIN memory
- Adjustable emissivity for measuring a variety of materials
Applications:
- Check AC units, ventilation, bearings, motors and transformers for overheating.
- Bad electrical connections and fuses.
Supplied with: Carrying bag, Battery and Instruction Manual
| FEATURE |
IR-730 |
||||
| Distance to Spot (D:S) | 10:1 | 12:1 | 20:1 | 30:1 | 50:1 |
| Temperature Range | 0 ℉ to 716 ℉ -18 °C to 380 °C |
0 ℉ to 1022 ℉ -18 °C to 550 °C |
-26 ℉ to 1922 ℉ -32 °C to 1050 °C |
-26 ℉ to 2282 ℉ -32 °C to 1250 °C |
-58 ℉ to 2822 ℉ -50 °C to1550 °C |
| Best Accuracy | ±2% | ±1.8% | |||
| Emissivity | 0.95 | Adjustable from 0.10 to 1.00 | |||
| Display Resolution | 4000.1 ⁰C / 0.1 ⁰F | 0.1 ⁰C / 0.1 ⁰F of reading < 999.9 | |||
| MIN/MAX Memory | • | • | • | • | • |
| DIF/AVG Temperature Display | - | • | • | • | • |
| Programmable high and low alarm | - | - | - | - | • |
| Tripod mount | - | • | • | • | • |
| USB interface | - | - | - | - | • |
| Built in memory | - | - | - | - | 99 |
| K-Type thermocouple measurement | - | - | - | - | • |
| Supplied With | Battery and Instruction Manual | Carrying bag, Battery and Instruction Manual | Software CD, USB cable, K-type thermocouple probe, Carrying bag, Hard carrying case (IR-750), Battery and Users Manual | ||
| Specifications | |
| Warranty: | One year |
| Battery life: | 10 hours with laser and backlight on, 30 hours with laser and backlight off |
| Size: | Approx.153 x 108 x 40 mm (6.0 x 4.5 x 1.6 in) |
| Weight: | Approx.180 g (0. lb) with battery installed |
