Description

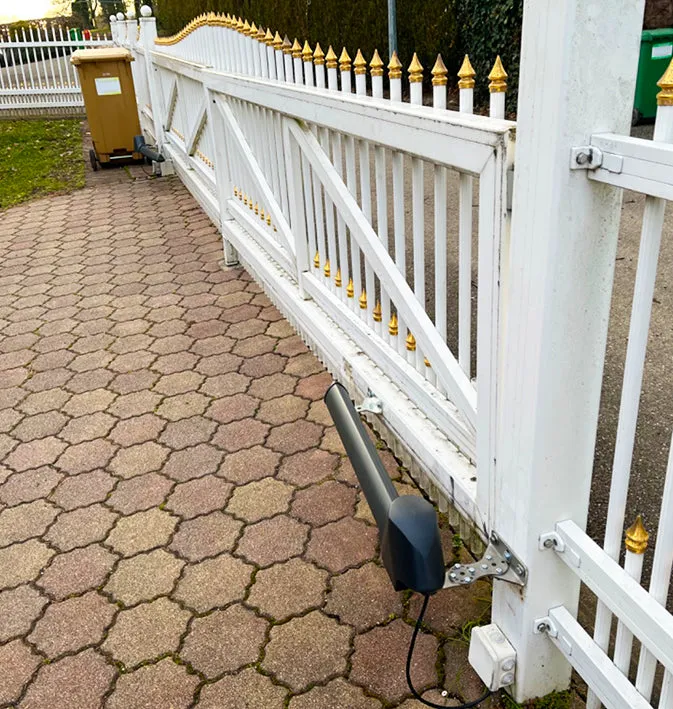

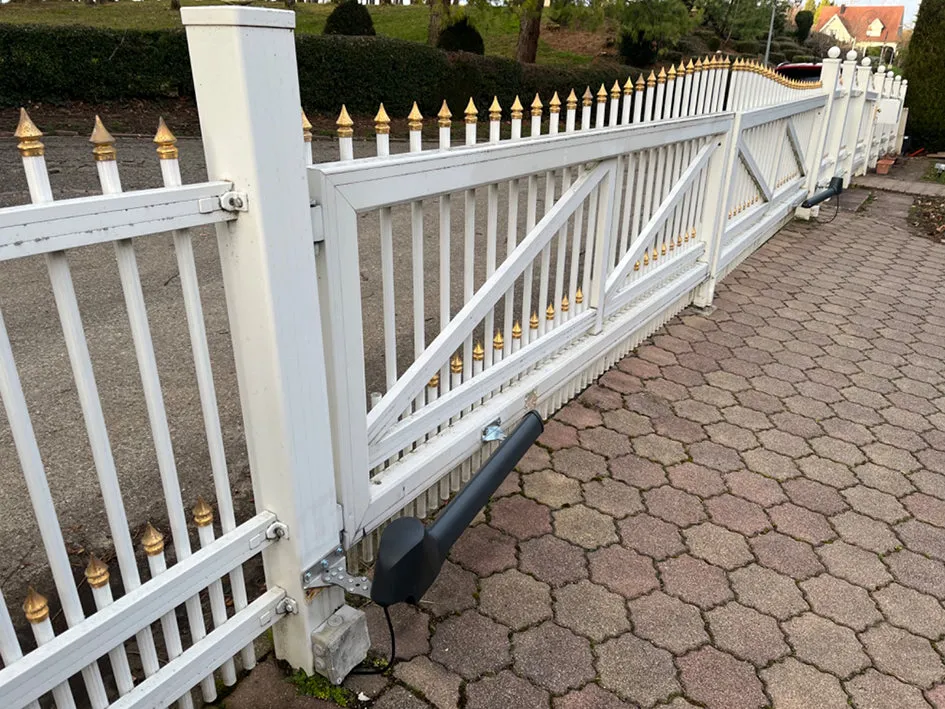

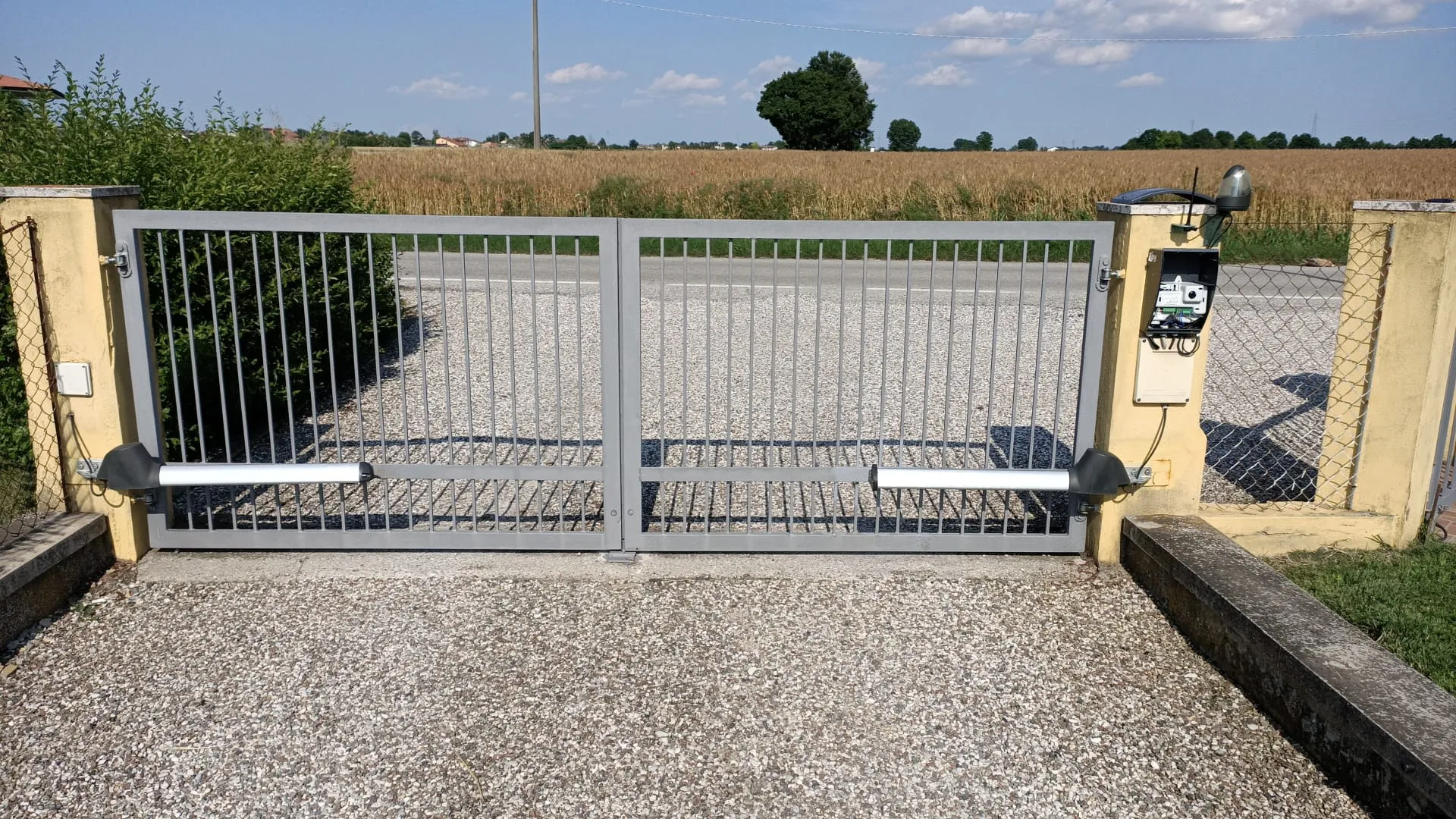

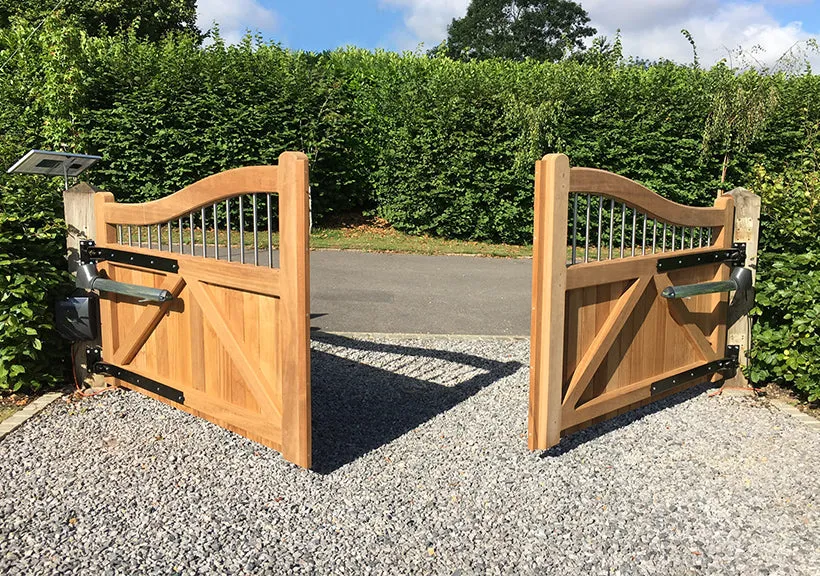

Ideal for double wing gate up to  4m/350kg

(total gate length up to 8m/700kg)

The perfect heavy duty gate opener.

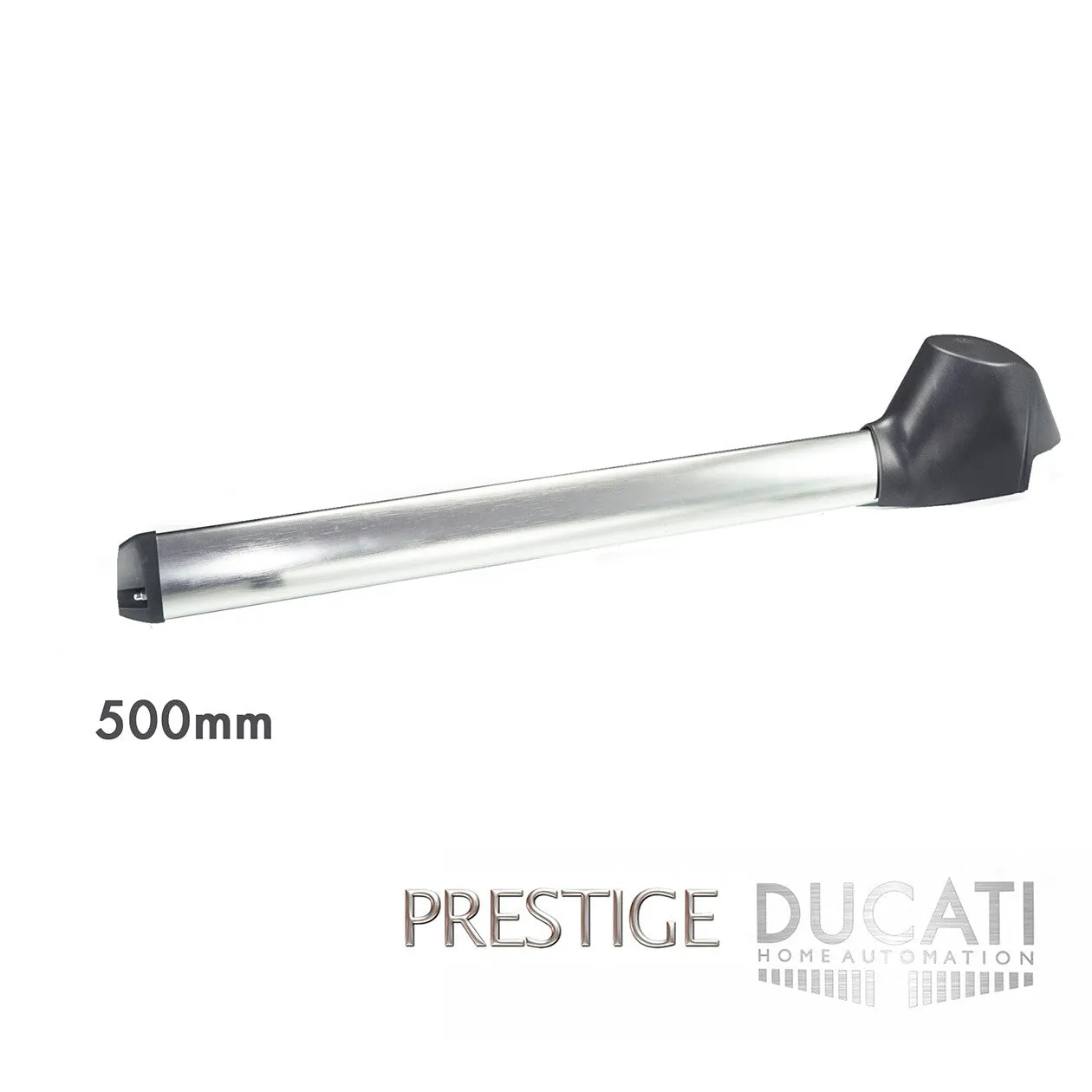

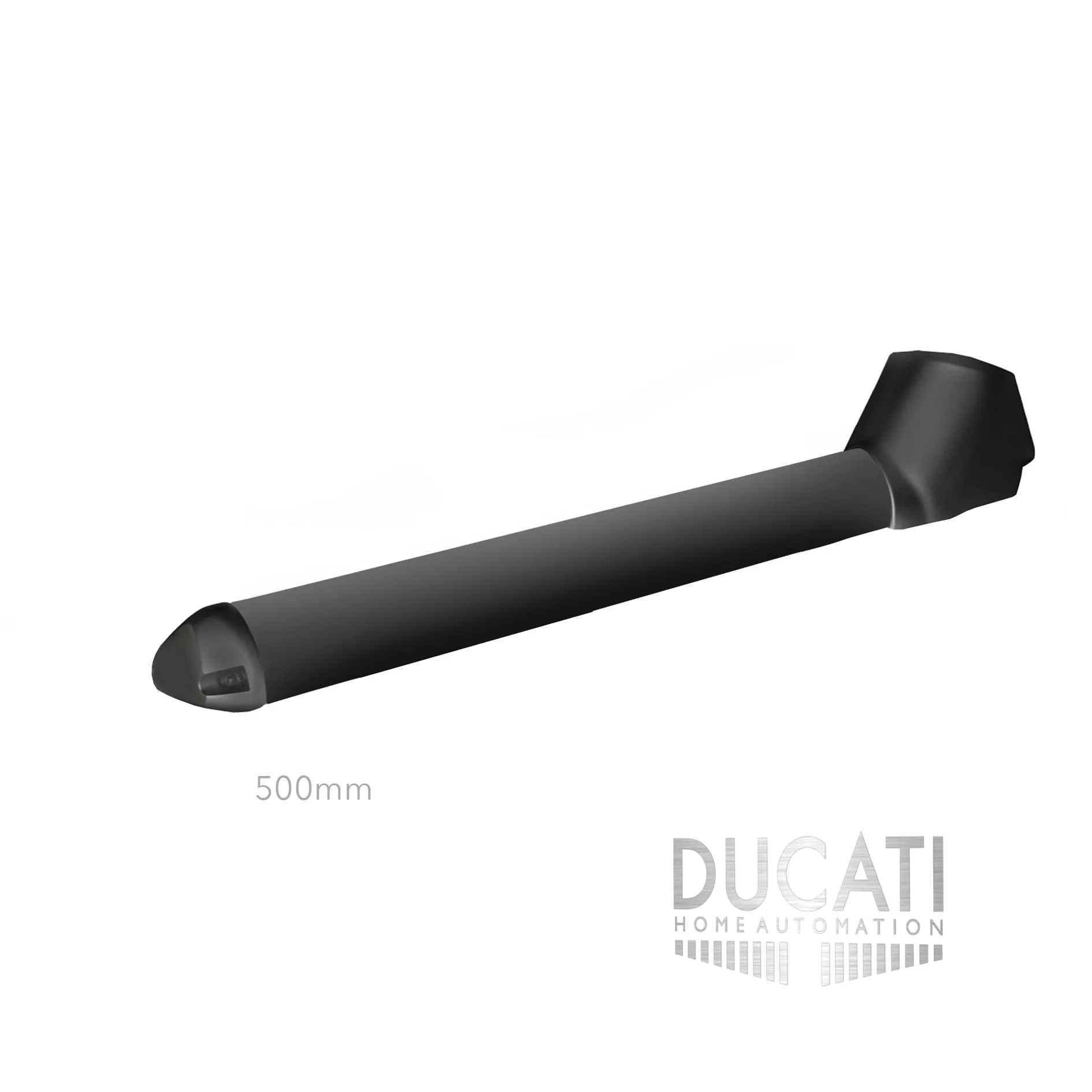

Comes with powerful  500mm long stroke motor
Ideal for residential & commercial use

DUCO SAFE

obstacle detection safety system guarantees maximal safety of use to your family

SELF LOCK TECHNOLOGY

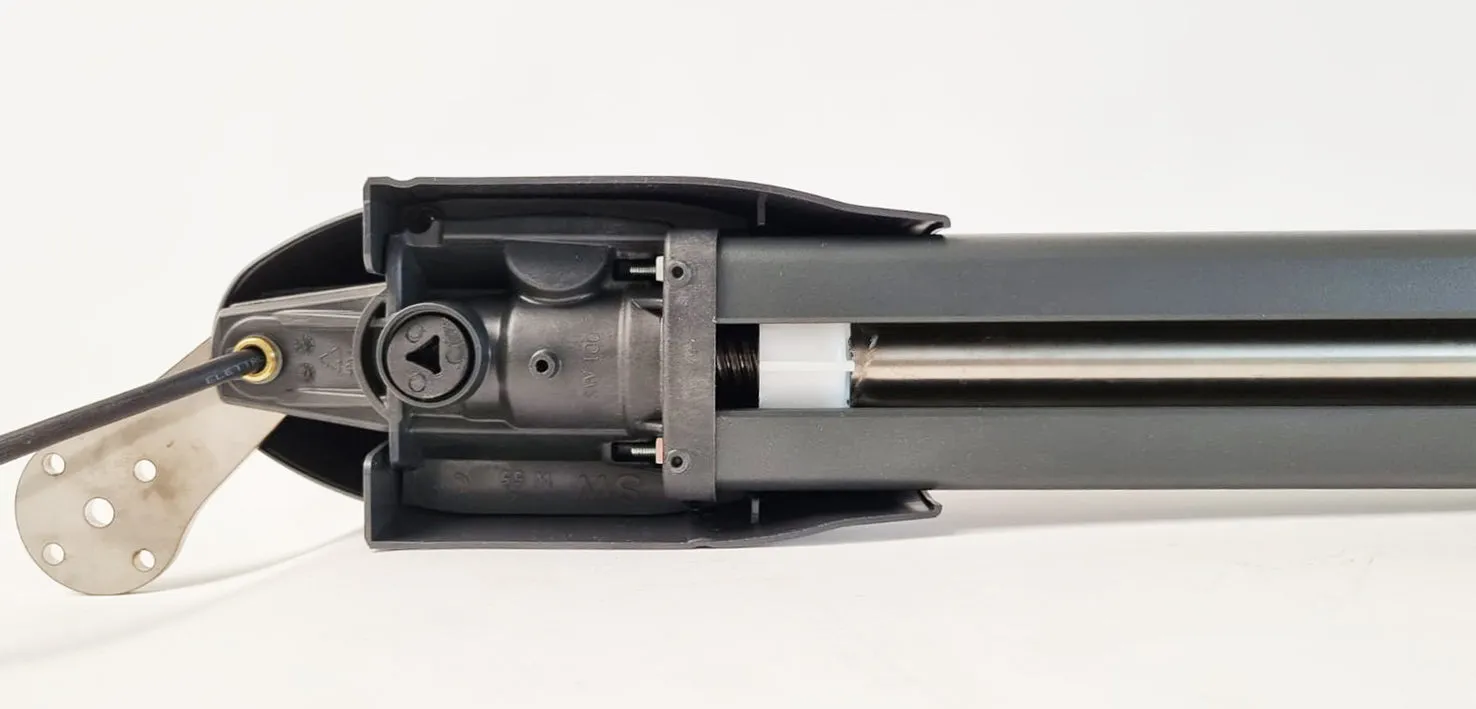

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

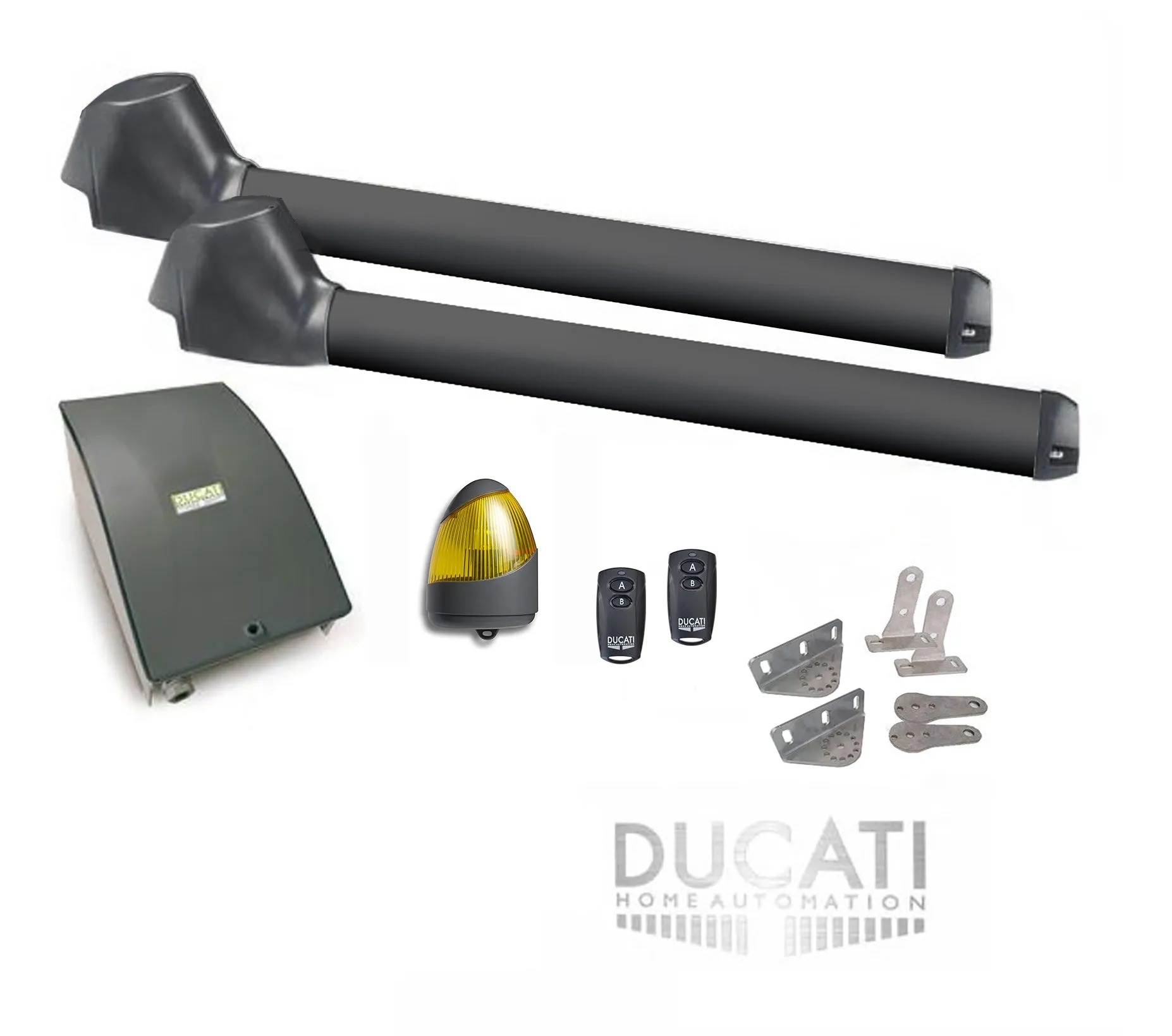

Kit Contents

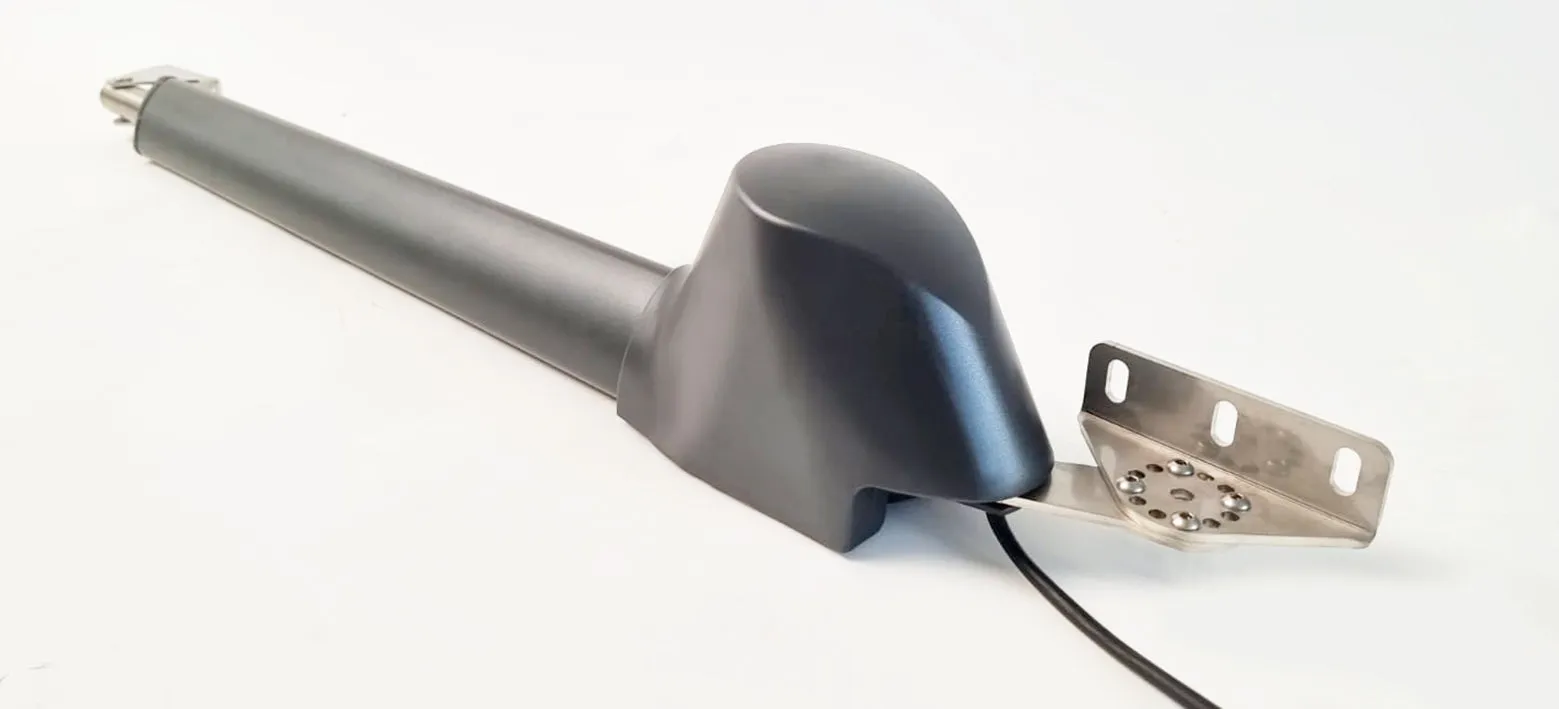

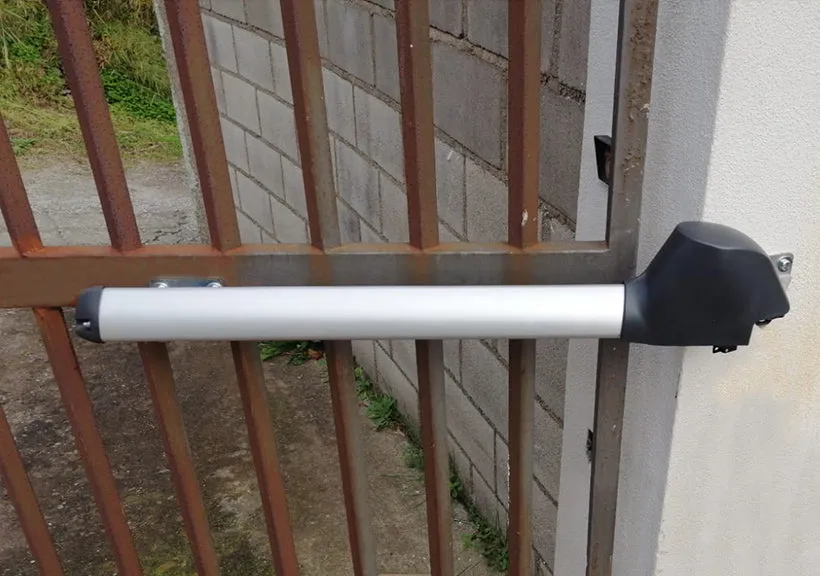

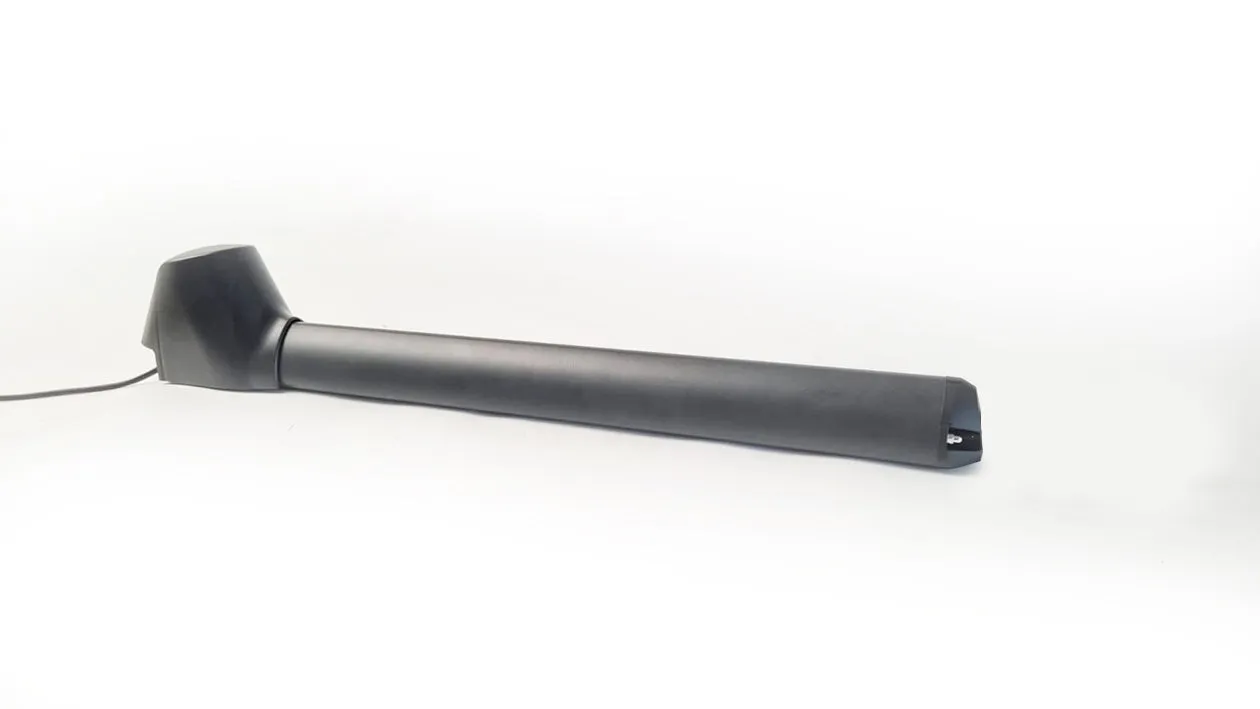

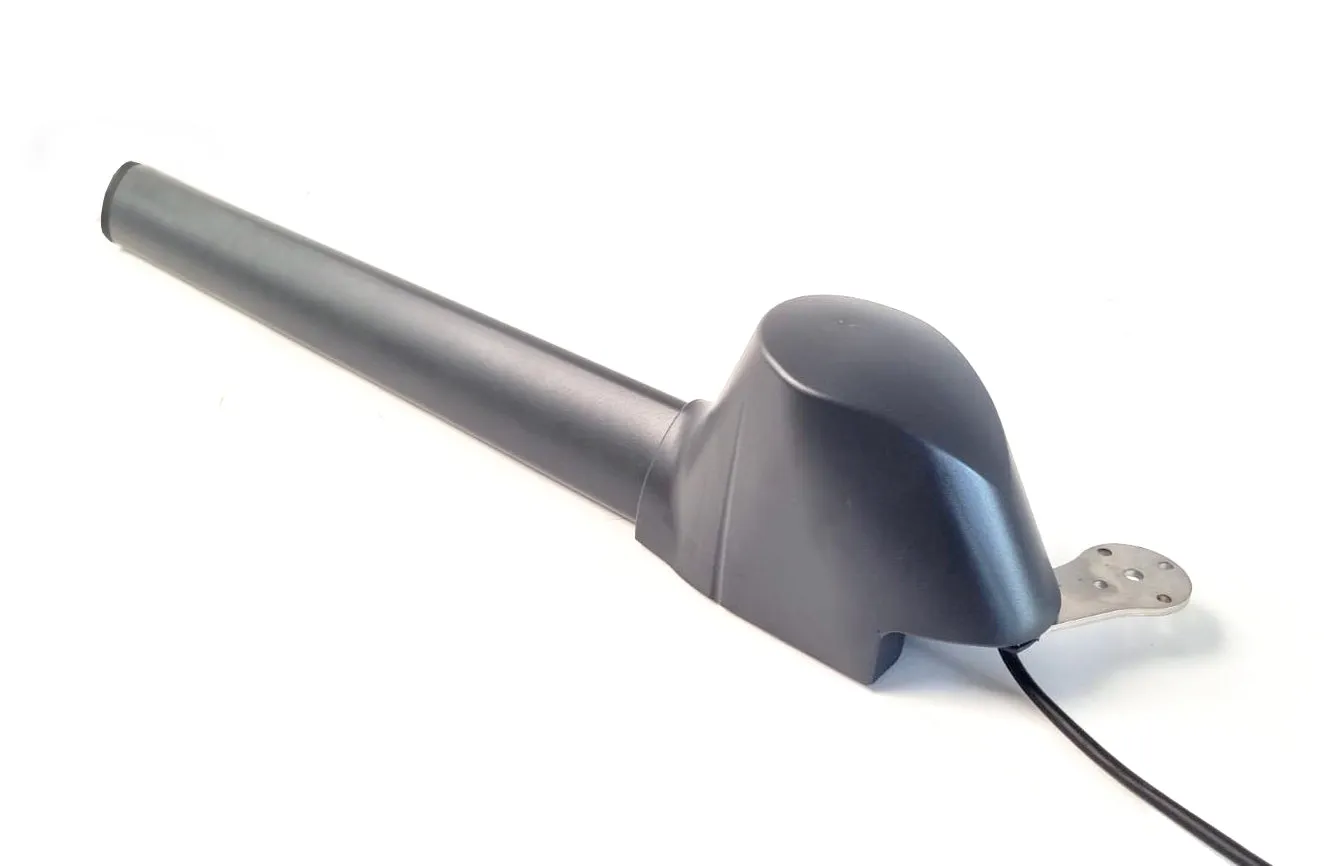

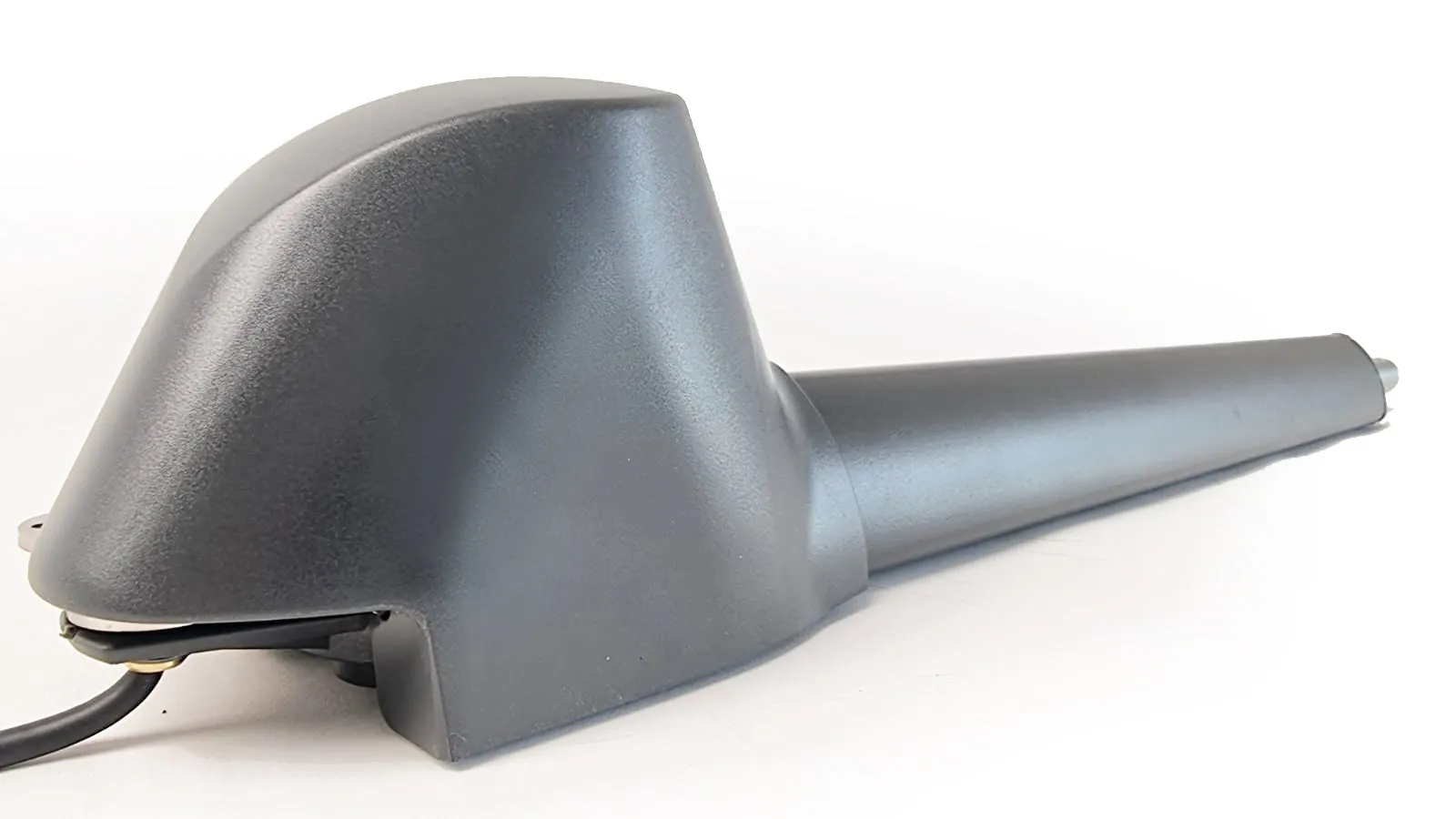

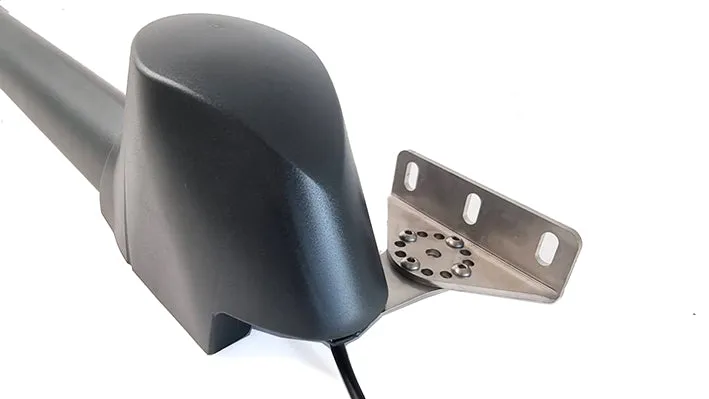

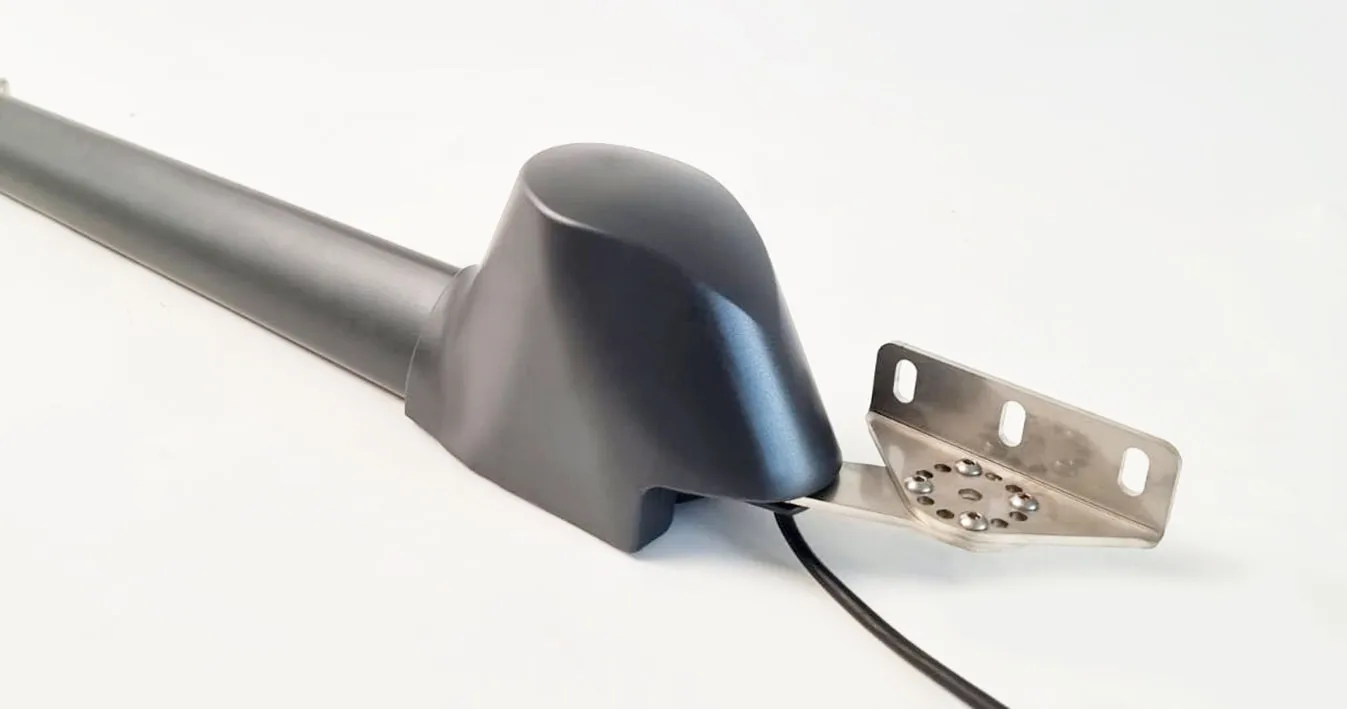

• 2x EVO 700 500mm stroke 12V electromechanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq
• set of multi-position actuator's fixing brackets
• 1x KONTROL 7855  large control box with electronic board CTH42, toroidal transformer, integrated radio receiver

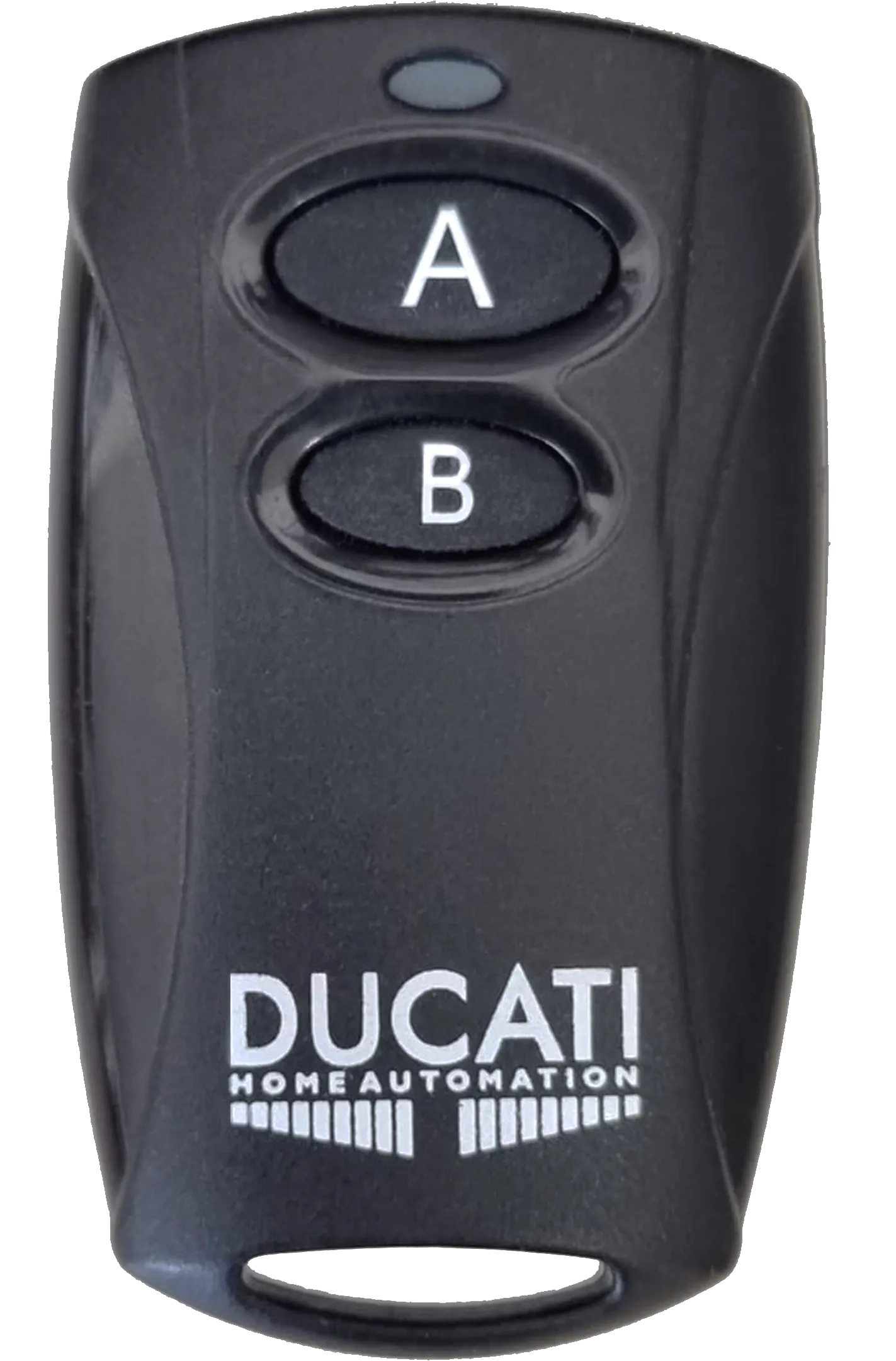

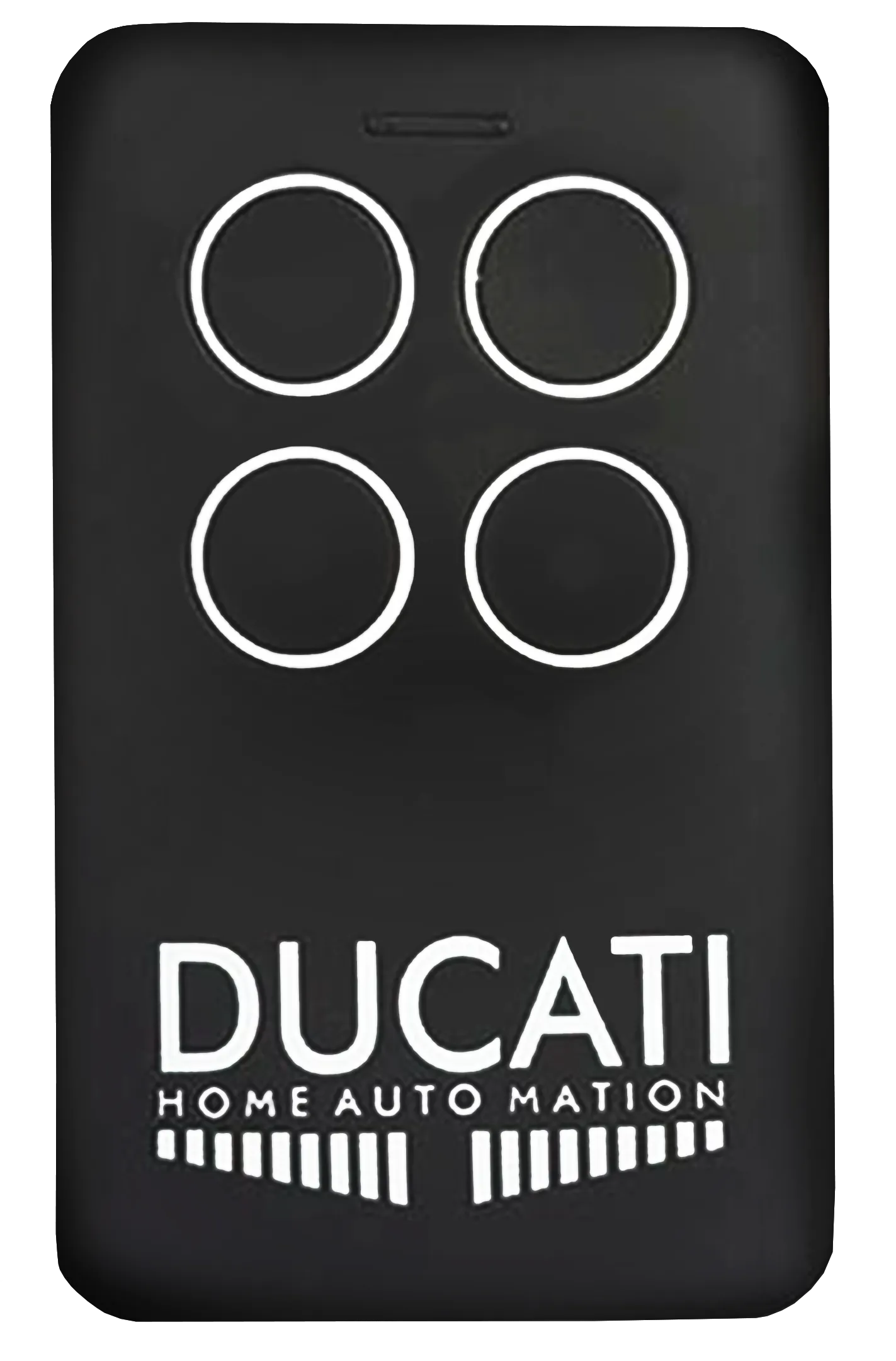

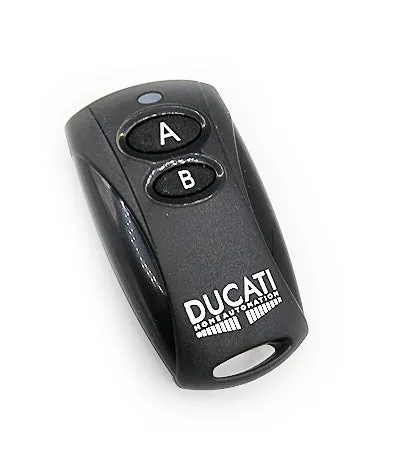

• 2x Ducati  rolling code radio transmitters

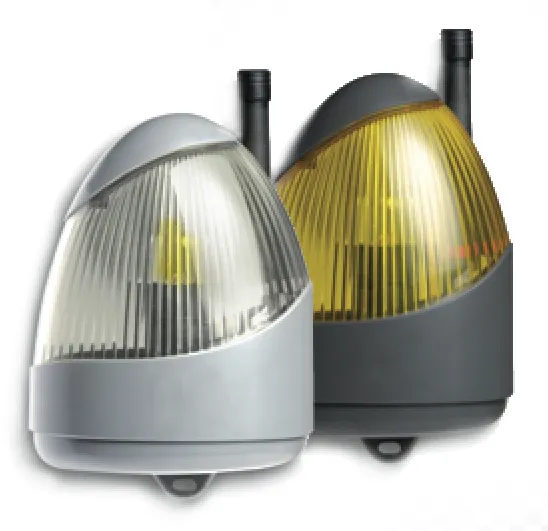

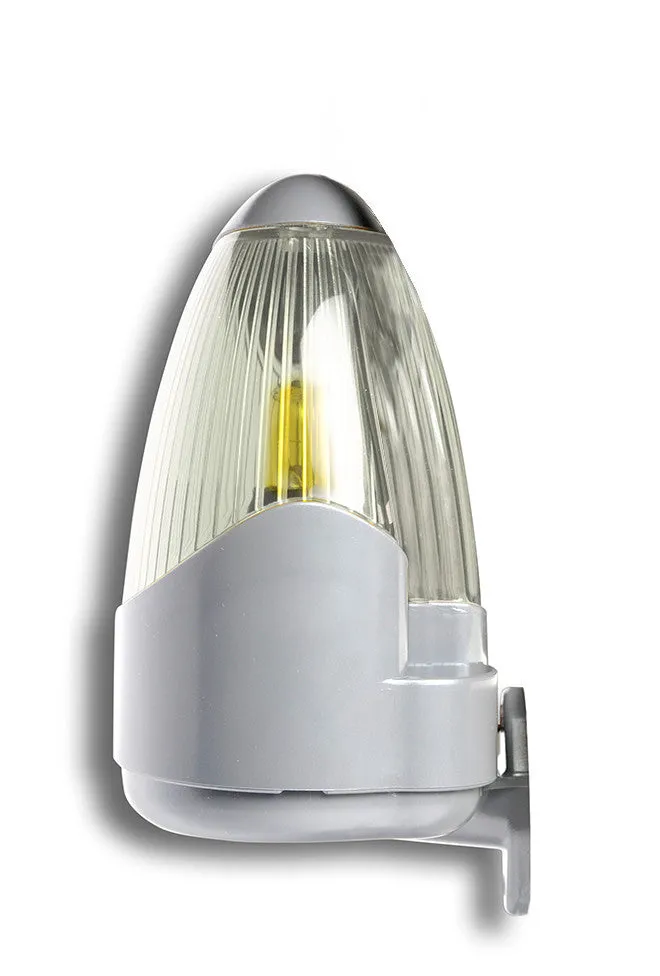

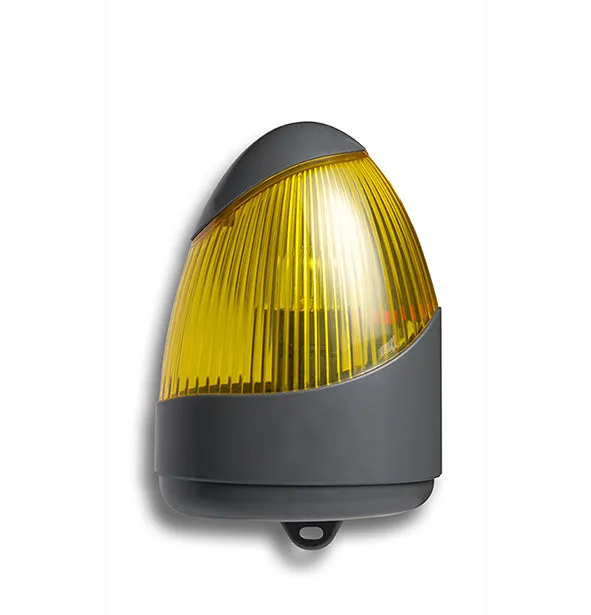

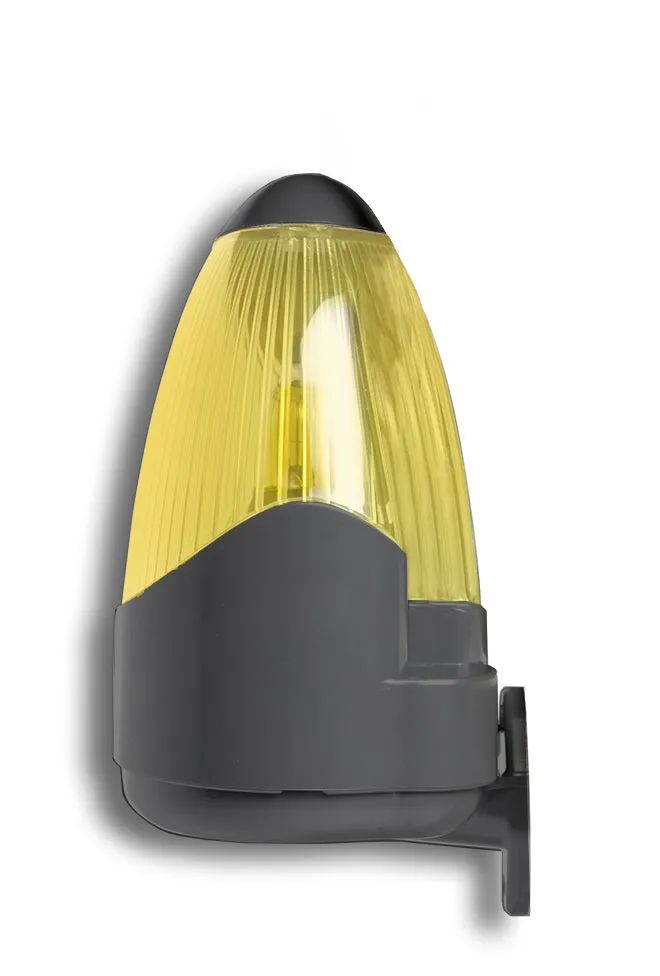

• 1x  - blinking light
• 1x key for manual emergency release
• 1x instruction manual

Features

• Can work independently in case of power failure: by adding the external battery charger module C/M/BAT 2.0 *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
• Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
• Adjustable motor power/ obstacle detection sensivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
• Ideal for a safe, quick and easy  installation: the system is electrocution risk-free.
• heavy duty opener: can work in continuous cycles  without overheating
• Possibility of connecting an external timed courtesy light (example: garden light)
• Pedestrian opening (1 partial opening the wing to allow the pedestrian crossing only) can be controlled by remote control or wired control.
• Possibility of connecting an external timed courtesy light (example: garden light)
• The gate is  automatically locked in closed position ( irreversibile system).
•  Electro-lock is not needed, but recommended for wing longer than 2,8m each. This opener is compatible with ac 12V electric-lock ( WARNING: electrolock with booster are required in case the opener is powered by back-up battery)
• Made in Italy - All components are manufactured in the company to warranty high  quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries
• Easy  self-storing  of the remotes controls by pushing one button
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

• Manual release system by universal triangular key

Technical data

ACTUATOR  TECHNICAL DATA

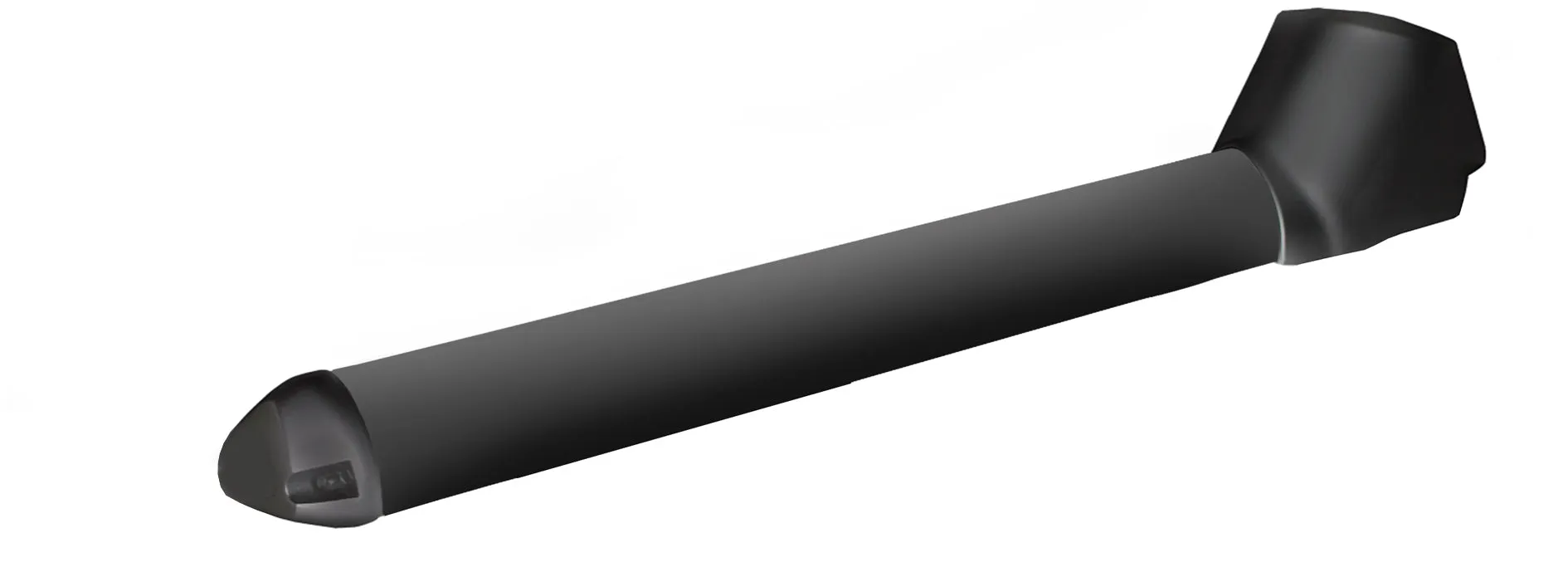

ELECROMECHANICAL TELESCOPIC  ACTUATOR EVO 700

NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model  in "FC" version are featured with on-board mechanical limits for the open & closed  wing position.
